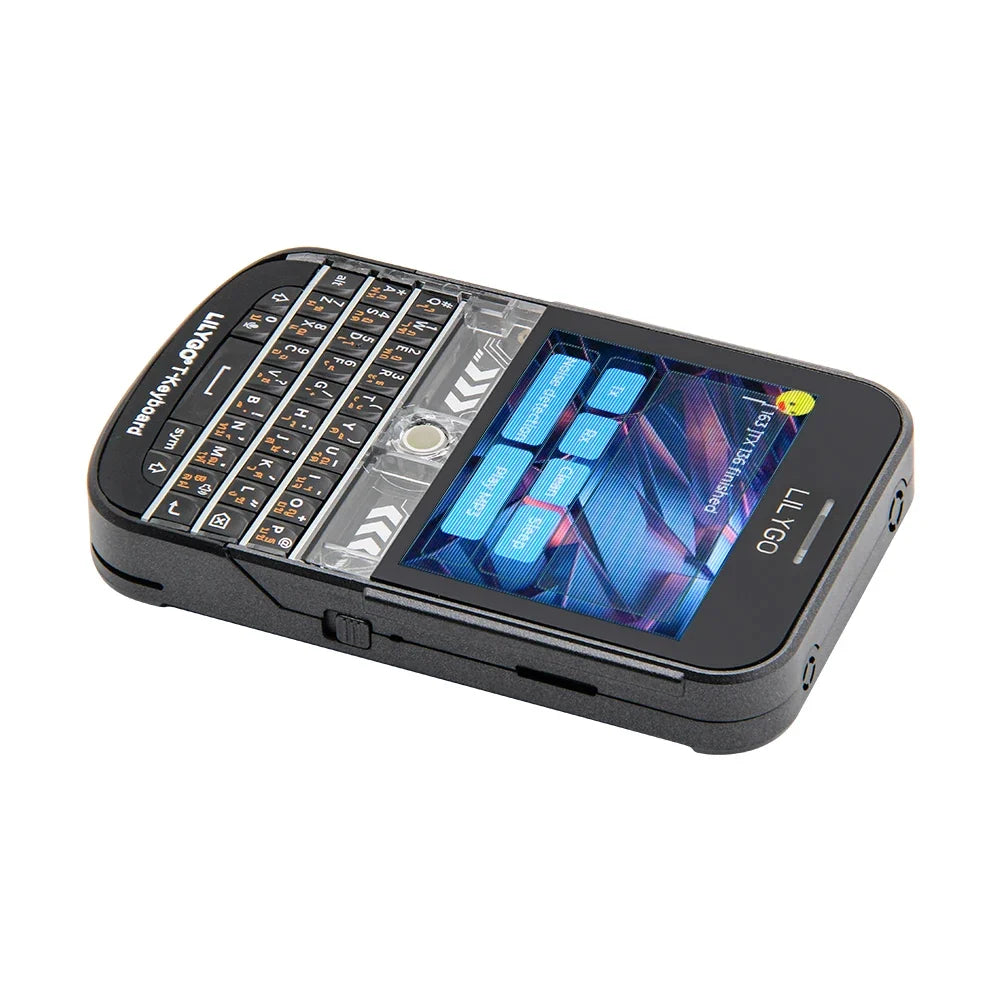

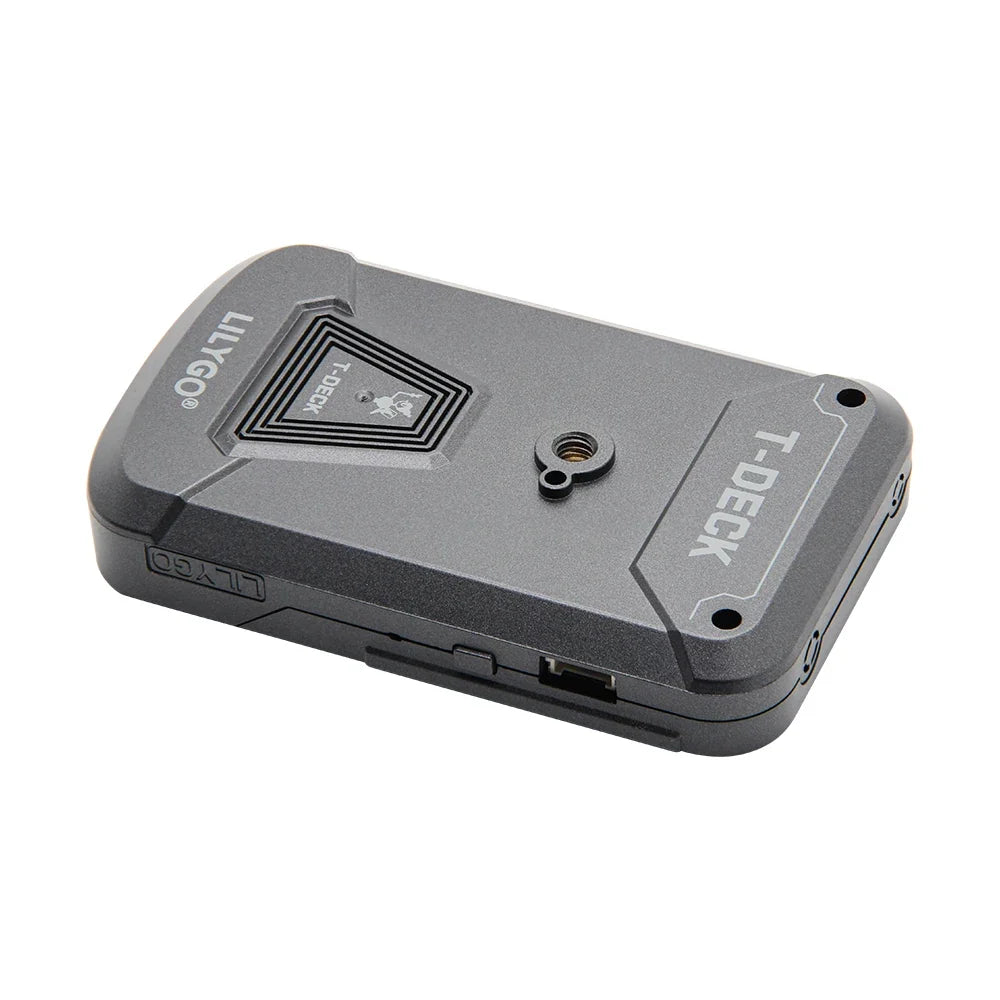

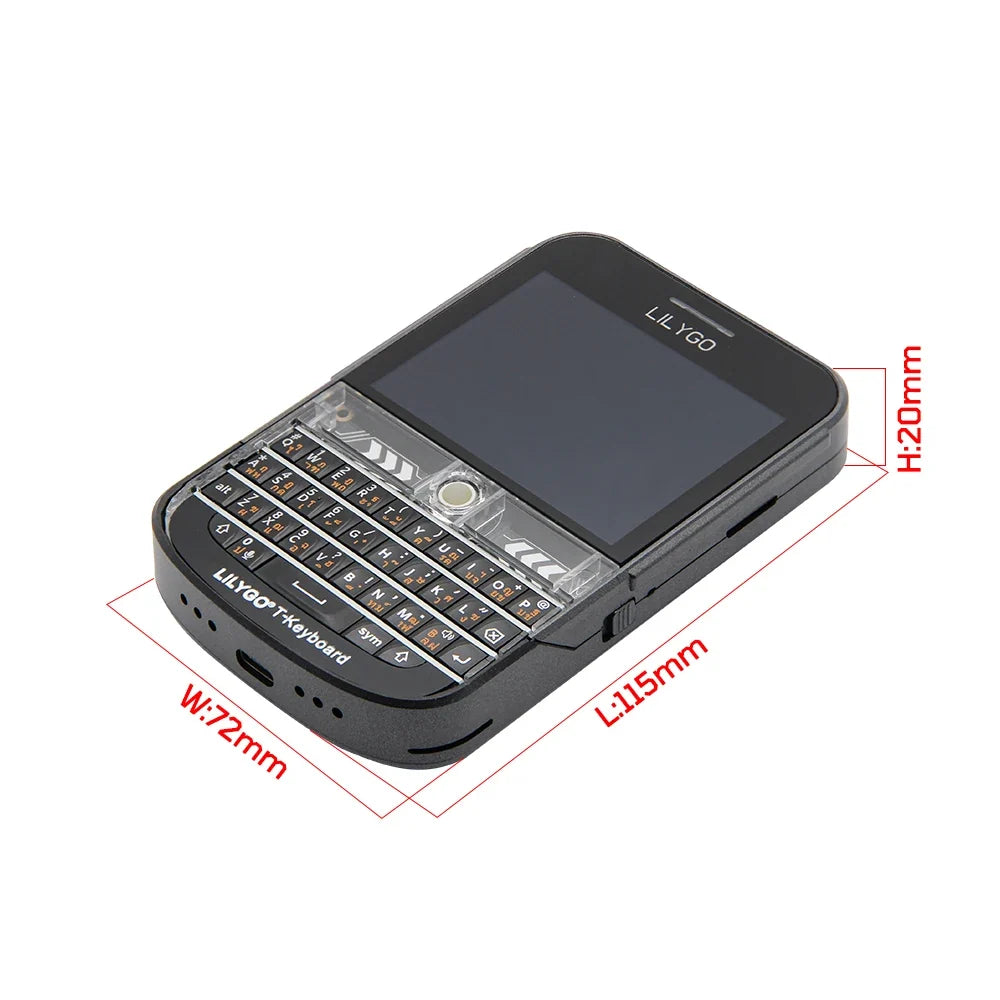

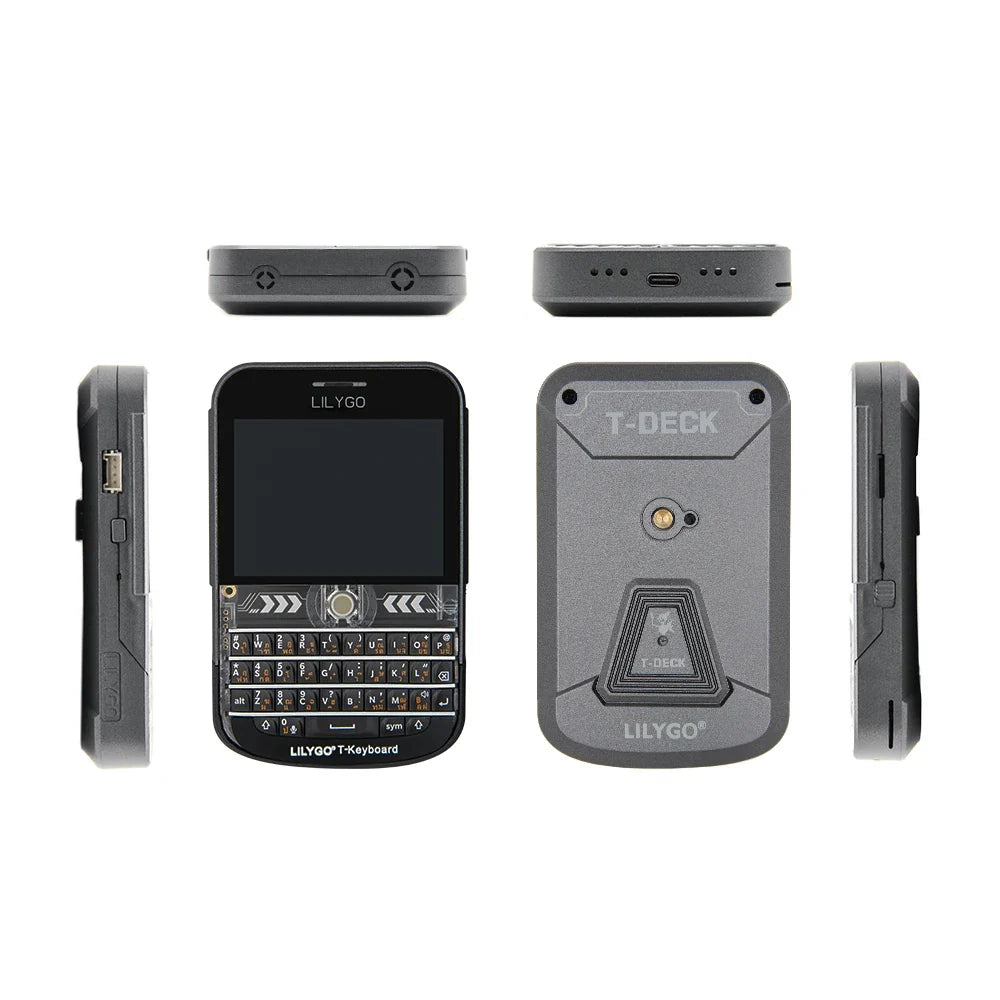

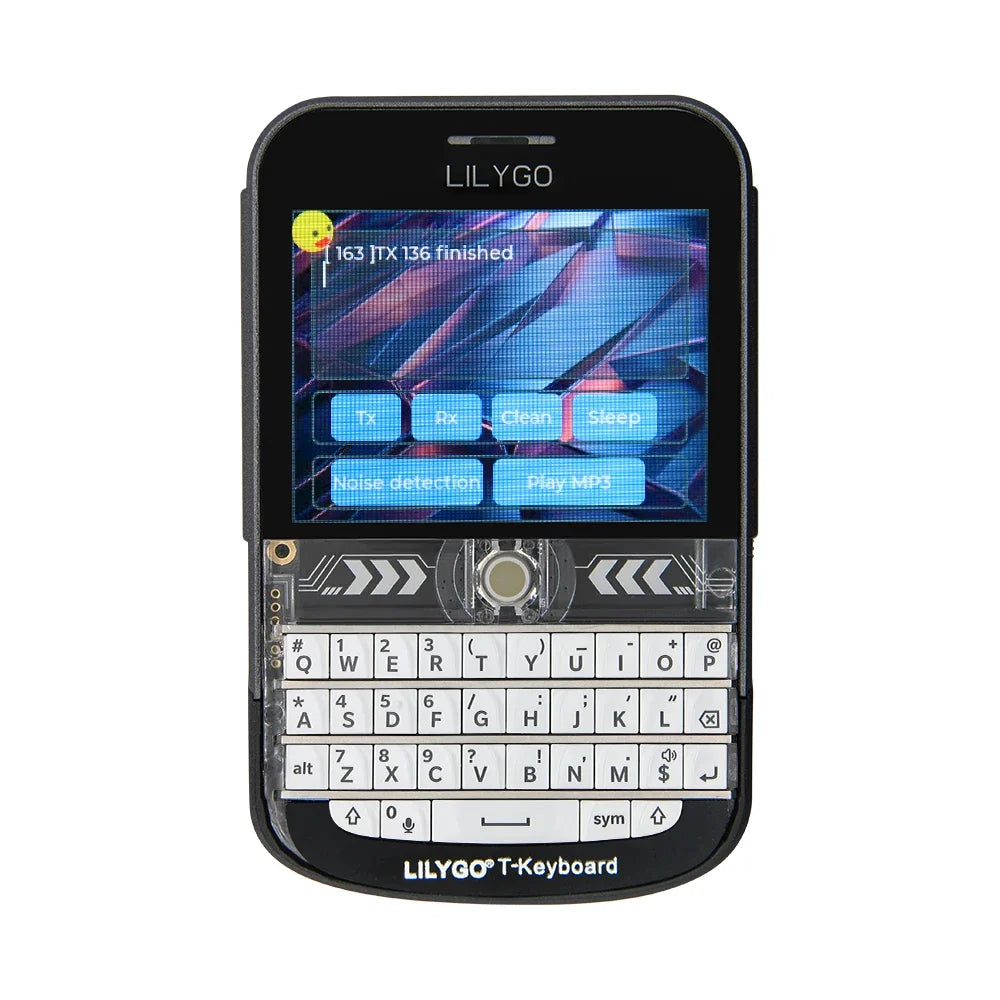

TDeck plus

TDeck plus is a powerful. all-in-one ESP32-S3 development board with an integrated keyboard. touchscreen. LoRa module. and GPS support. Designed for portable prototyping. mesh networking. and off-grid communication. it combines functionality and flexibility in a compact handheld form.

build Key Features of TDeck plus:

• memory ESP32-S3 dual-core 240MHz processor with 16MB Flash and 8MB PSRAM
• smart_display 2.8-inch IPS touchscreen (320×240 resolution. capacitive)
• keyboard Full QWERTY keyboard with backlight and multi-function keys
• photo_camera Integrated GC2145 2MP camera module
• volume_up Speaker (MAX98357A) and dual MEMS microphones (ES7210 codec)
• wifi Wi-Fi 4 (802.11 b/g/n) + Bluetooth 5.0 BLE/Mesh
• radio LoRa SX1262 module (+22 dBm) supporting 433/868/915 MHz bands
• gps_fixed GPS supported via Grove UART port (external module optional)
• battery_charging_full 2000mAh rechargeable battery with TP4065B charger and battery monitoring (IO04)
• sd_storage MicroSD card slot for additional storage
• extension Expansion: GPIO. I2C. SPI. Grove connector
• usb USB-C port with USB Host support

construction Developer-Ready for All Projects:

TShark Plus supports Arduino IDE. PlatformIO. and MicroPython. It's fully open-source with sample code and schematic files available on GitHub. Whether you're building a mesh communicator using Meshtastic or a portable UI-based IoT controller. this device delivers.

flash_on Example Use Cases:

• 📡 Off-grid communication (Meshtastic)
• 🛰️ GPS-based tracking devices
• 🎛️ Handheld IoT controller interfaces
• 🛠️ Wireless test and dev tools
• 🎮 Retro-style portable dev consoles

⚠️ Legal Disclaimer:
TShark Plus is a developer tool. Use of its wireless features must comply with local laws. Unauthorized transmission. GPS spoofing. or network intrusion is illegal and strictly prohibited. Always test responsibly.
